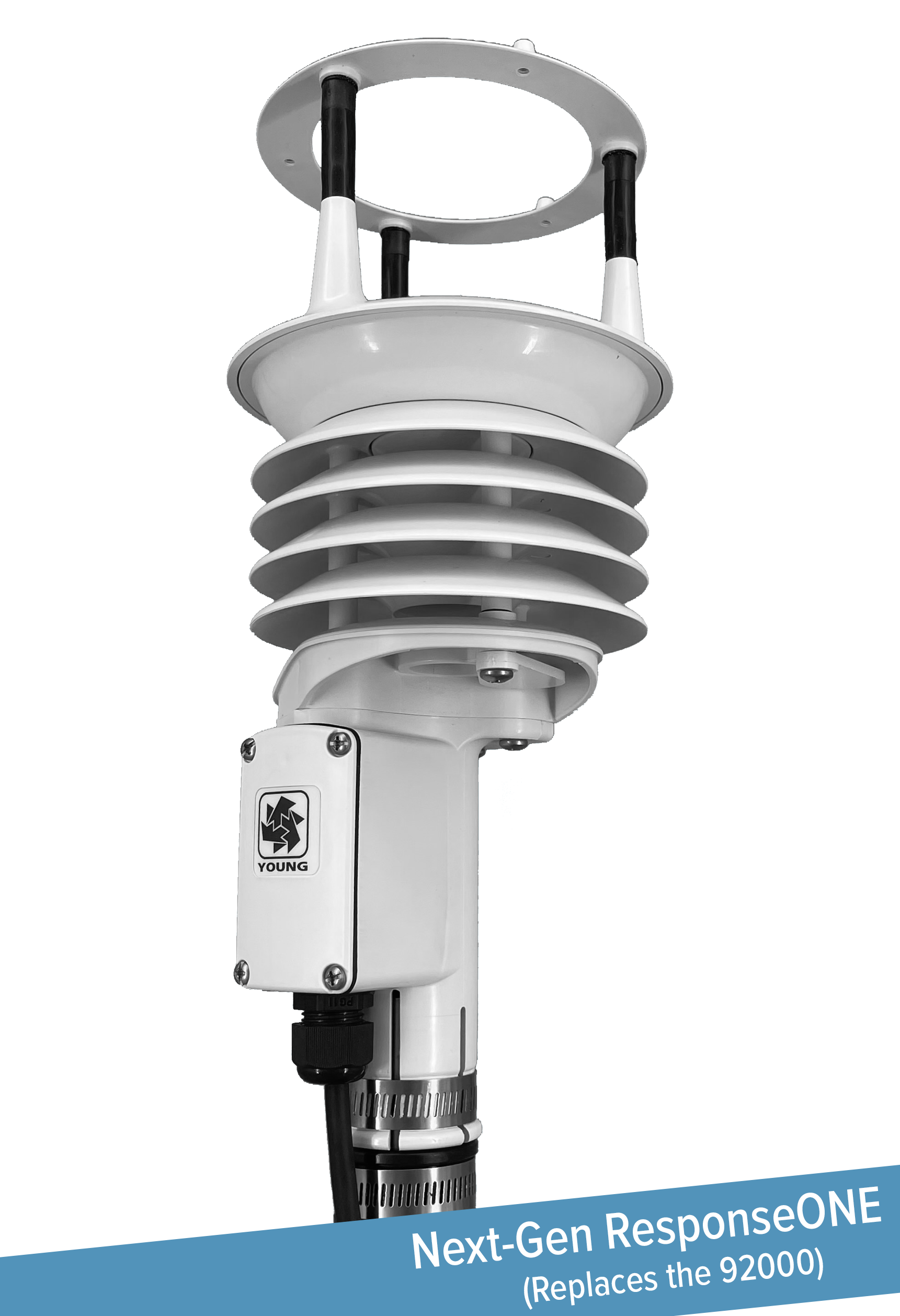

ResponseONE™-Pro Weather Transmitter

93000 / 93500

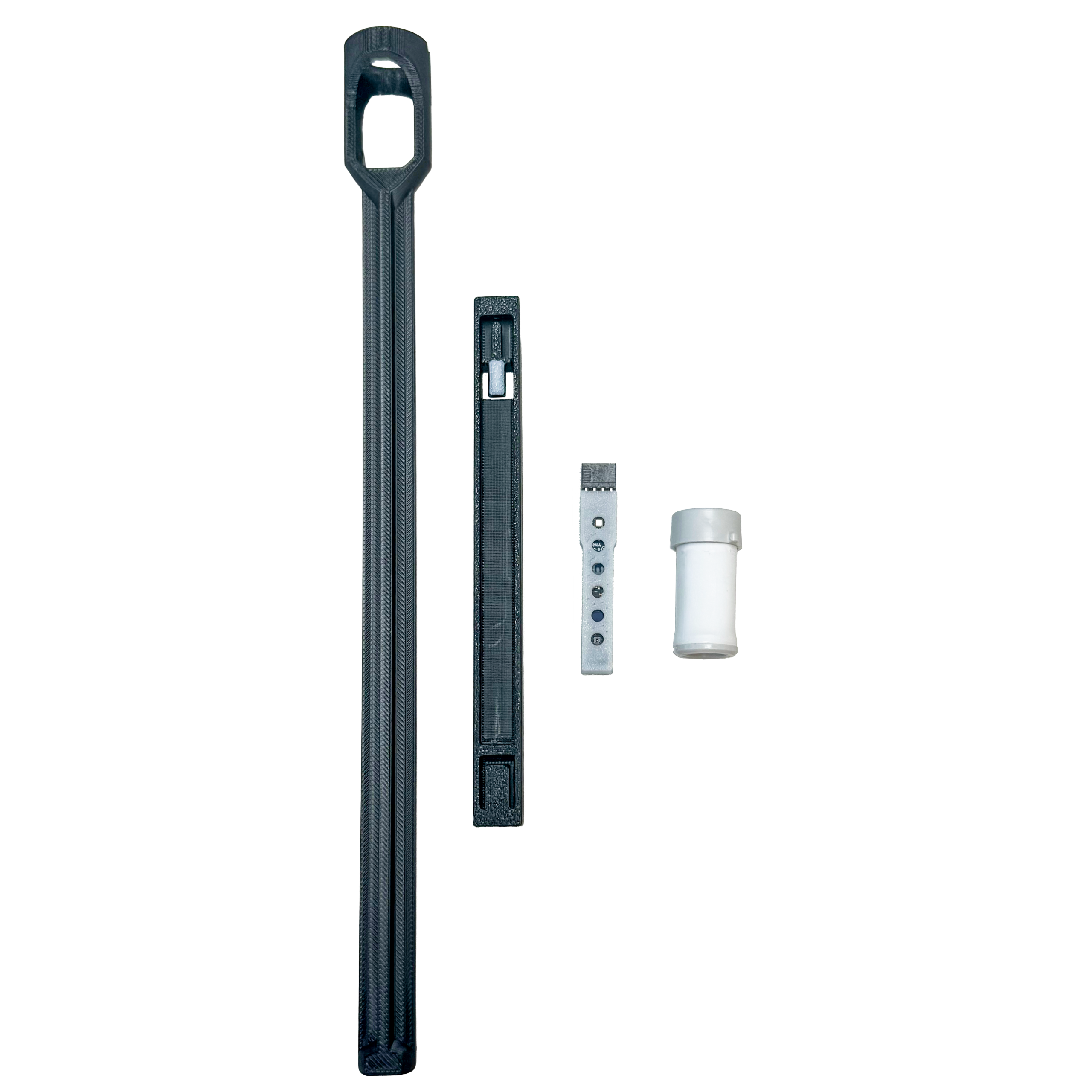

YOUNG’s new ResponseONE-Pro Weather Transmitter measures four key meteorological variables with one compact instrument and allows for easy sensor stick and filter replacement in the field.

Price range: $0.90 through $2,940.00

Serial Output (recommended cable: 18660)93000 $2,680.00
Serial Output (recommended cable: 18660)93500 $2,940.00
Unheated (recommended cable: 18641)52203 $552.00
Heated 120V/60hz (recommended cable: 18641-Signal, 18641-Heater)52202 $720.00
22 AWG, Per Ft.18660 $2.28
22 AWG, Per Ft.18641 $0.90
x

Quantity discounts applied during checkout. Excludes sensor cables.

Cable prices are per foot. To order, please input the total number of feet as your quantity.

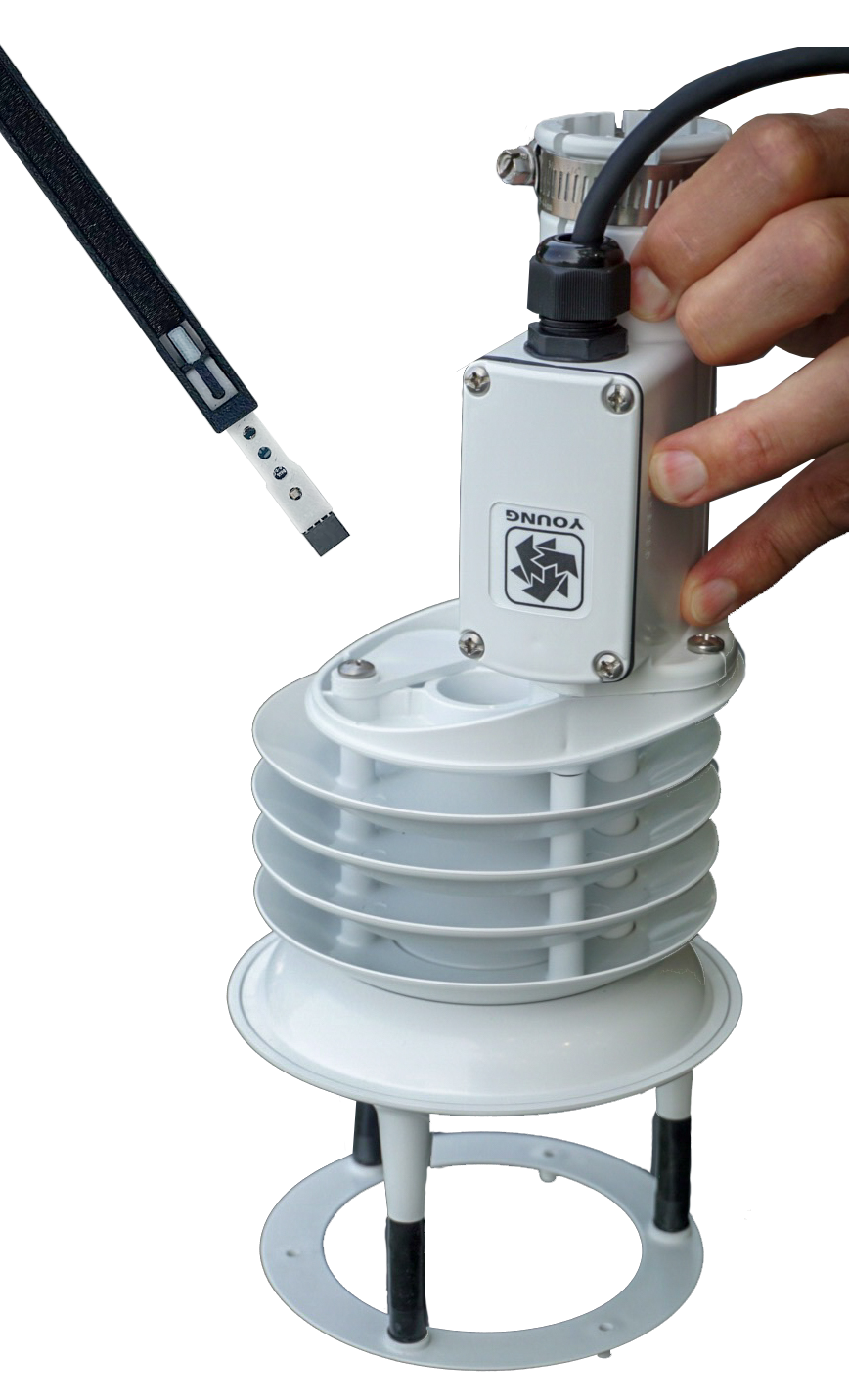

The brand NEW Model 93000 ResponseONE-PRO™ Weather Transmitter is a compact instrument that measures the same four key meteorological variables as traditional all-in-one stations (wind speed and direction, atmospheric pressure, relative humidity, and temperature), but with a twist. This new design, backed by 3+ years of successful field testing, features an access port so you can easily remove and replace the protective filter and internal sensor module. That allows you to quickly service or replace the internal sensors or plug in a pre-calibrated sensor module, restoring the performance back to factory standards without the need to return to the manufacturer. No more long shipping times or costly delays. It features durable, corrosion-resistant construction and is designed for simple installation and wiring. Terminals are included for easy connection of the optional tipping bucket rain gauge. In addition, a variety of useful serial output formats are provided. Output may be continuous or polled to conserve power. RS-232 or RS-485 serial format options enable direct integration with YOUNG displays, marine NMEA systems, data loggers, or other compatible serial devices. An easy-to-use Windows setup program is provided with each sensor, so you can customize device settings to meet your needs.

The YOUNG Model 93500 ResponseONE™ Weather Transmitter includes an internal compass to provide orientation for wind direction, making it ideal for mobile or portable applications.

Wind Speed:

Range: 0–70 m/s (156mph)
Resolution: 0.01 m/s
Accuracy:  ±2% or 0.3 m/s (0–30m/s), ±3% (30 – 70 m/s)

Wind Direction:

Azimuth Range: 0-360°
Resolution: 0.1°
Accuracy: ±2°

Temperature:

Range: -40 to +60°C
Resolution: 0.1°C
Accuracy: ±0.3°C (-20 to +50°C), ±0.7°C (other)

Relative Humidity:

Range: 0–100%
Resolution: 0.1%
Accuracy: ±2% (5-95%)

Atmospheric Pressure:

Range: 500–1100 hPa
Resolution: 0.1 hPa
Accuracy: ±0.3 hPa (0 to +60°C), ±1.0 hPa (-40 to 0°C)

Electronic Compass:

Range: 0–360°
Resolution: 0.1°
Accuracy: ±2°

Serial Output (selectable):

Interface: RS-232, RS-485/422, SDI-12
Formats: NMEA, SDI-12, ASCII (polled or continuous)
Baud Rates: 1200, 4800, 9600, 19200 and 38400

Power Requirement:

Voltage: 10–30 VDC
Current: 7 mA @ 12 VDC typical, 80 mA max

EMC Compliance:

FCC Class A digital device, IEC standard 61326-1

Operating Temperature:

-40 to +60°C

Protection Class:

IP65

Removable Bird Spikes:

Included

Dimensions:

Overall height: 28.3 cm (11.1 in)
Diameter: 13.5 cm (5.3 in)
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)

Weight:

0.7 kg (1.5lb)

Shipping Weight:

1.6 kg (3.5lb)
